Description
This Peplink MAX BR1 Pro 5G utilizes a x65 chipset and supports PoE Input as well as Edge Computing via Docker support with 8GB of internal storage.
Specifications

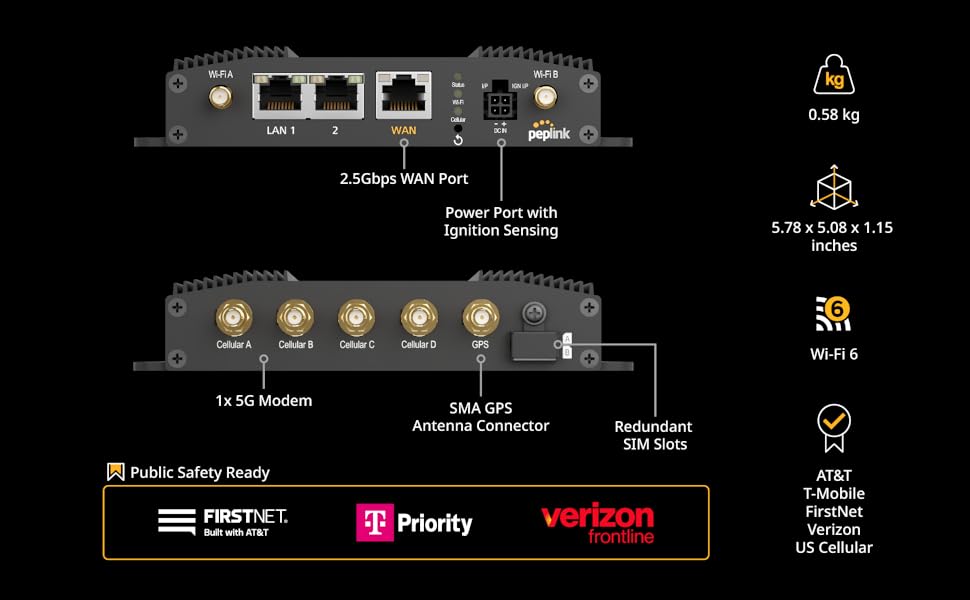

WAN Interface
1x 10/100/1000/2500M Ethernet
1 x Embedded 5G/Cat 20 LTE modem with Redundant 4FF Nano SIM Slots
Cellular Modem – Global support with US carrier certifications from AT&T, FirstNet, T-Mobile and Verizon (5G NSA, C-Band, and Consumer eUICC; 5G SA support is pending as of September 2, 2025).
Supported Frequency Bands:
5G (NSA & SA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Downlink/Uplink Datarate:
5G: 4.1 Gbps / 900 Mbps
LTE CAT-20: 2 Gbps / 211 Mbps
LAN Interface
2x 10/100/1000M Ethernet
WiFi Interface:
Simultaneous Dual-Band (2.4GHz / 5GHz)
Wi-Fi 6, 2X2 MU-MIMO
Wi-Fi WAN and/or AP
Transmit Power:
2.4Ghz: 21 dBm
5.0GHz: 22 dBm
Router Throughput
1 Gbps
Recommended Users
1-150

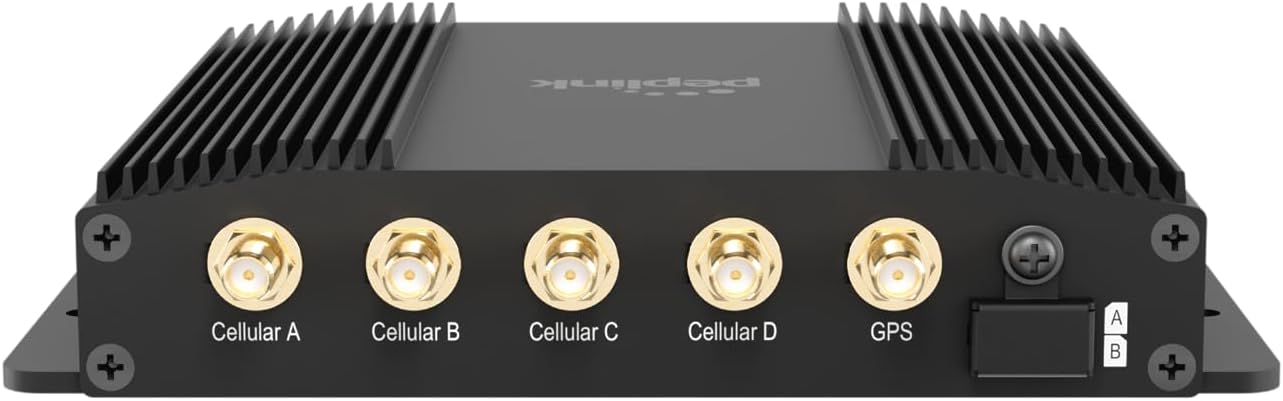

Antenna Connectors
4x SMA Female Cellular Antenna Connectors
2x RP-SMA Female Wi-Fi Antenna Connectors
1x SMA Female GPS Antenna Connector
Power Input
10 – 30V
Power Consumption
8 W (nominal), 19 W (max.)

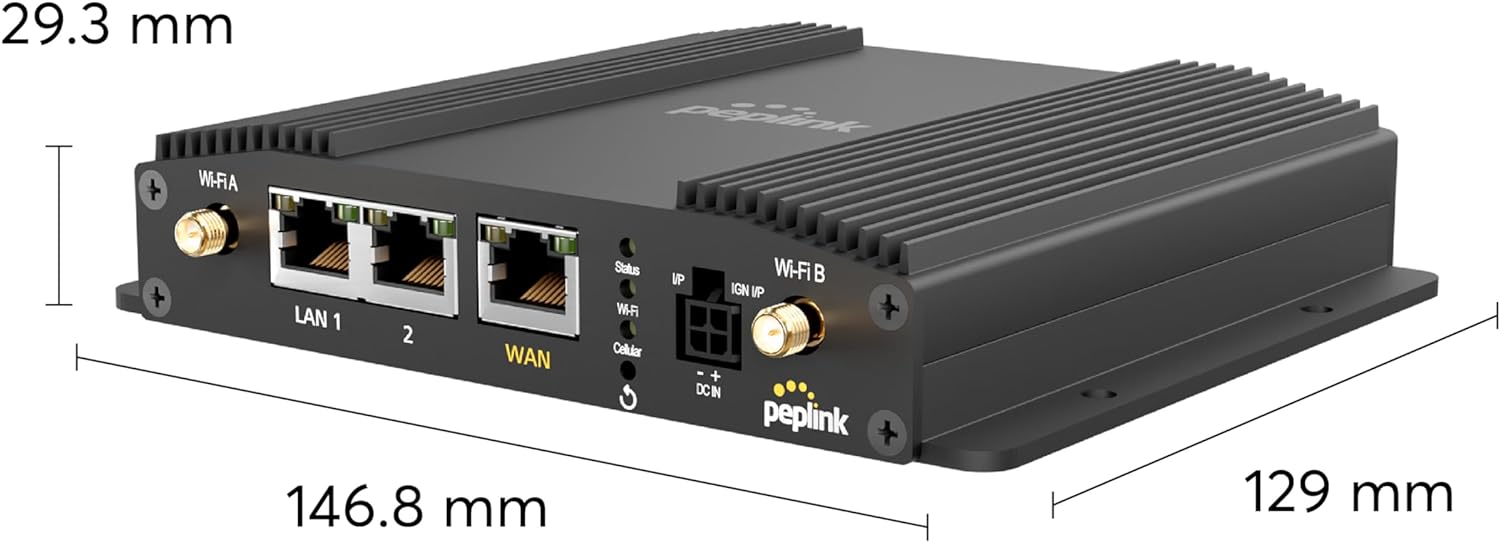

Dimensions
5.78″ x 5.52″ x 1.15″
146.8 x 140.3 x 29.3 mm
Weight
1.59 pounds
720 grams
Operating Temperature
-40° – 149°F
-40° – 65°C
Humidity
15% – 95% (non-condensing)
Certifications
FCC, CE, RoHS
E-Mark
EN61373 Shock and Vibration Resistance
EN50155 Railway Applications
Electronic Equipment used on Rolling Stock
EN61000 Electromagnetic Compatibility
EN45545-2 Railway applications – Fire protection
Package Contents

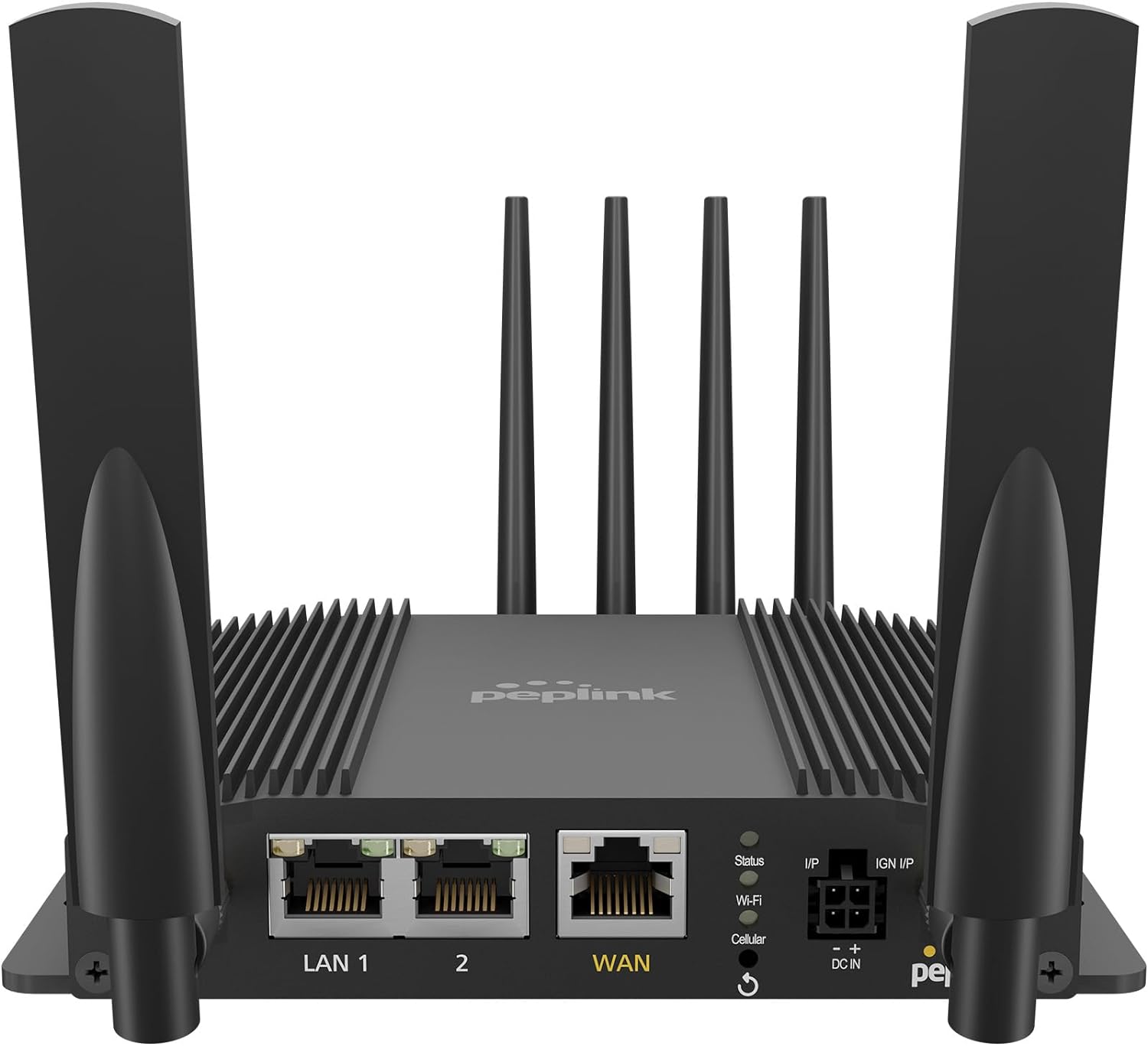

MAX BR1 Pro 5G
1x 12V2A Power Supply (ACW-632)
4x LTE/5G Antennas (ACW-235)
2x Wi-Fi Dual Band Antenna (ACW-341)
1x GPS Antenna (ACW-232)
